Nonwoven Fabrics Polyester Spunbond PTFE Membrane Aluminum Coating Flame Retardant In Industrial Filtration

Basic Properties
Place of Origin: China
Brand Name: Farrleey
Certification: ISO9001:2015, FDA,CE
Model Number: TZ/ALFMZR260
Trading Properties
Minimum Order Quantity: 1 sqm
Price: USD1.5-USD3.0
Payment Terms: L/C, T/T
Supply Ability: 10000sqm per day
Specifications
Length: 400m Waterproof: Yes
Color: Silver Membrane Type: PTFE
Spunbond Type: Spunbond Weight: 100-300gsm
Tensile Strength: High Thickness: 0.61±0.05mm
Conductive: Yes Width: 0.6m,2.1m Or Customized
Air permeability: High Material: Polyester
Chemical Resistance: Yes
High Light:

Flame Retardant Spunbond

,

Industrial Filtration Spunbond

,

PTFE Membrane Spunbond

Product Description

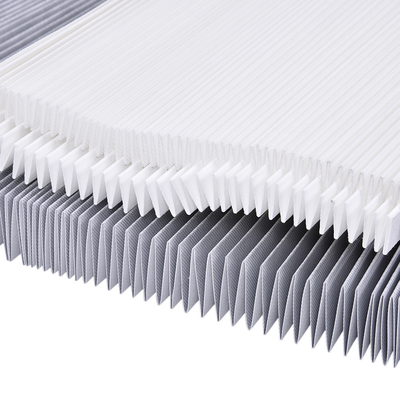

Nonwoven Fabrics Polyester Spunbond PTFE Membrane Aluminum Coating Flame Retardant In Industrial Filtration



Polyester is a synthetic media. It is widely use in chemical processing, cement, pharmaceutical, iron & steel, foundry, food and other industries.
According to your applications, chemical finish can be applied to the surface of it.
Chemical Finish:
Water & Oil Repellent
Anti-static Coating
PTFE membrane



Anti-static media is used to dissipate electrostatic charges where explosive hazards exist or

charged dust particles resist release from non-conductive filter media.



Aluminum coated series filter media is on normal polyester non-woven overlying a conductive aluminum coating.

Basically is an antistatic, explosion-proof function. And can add oil & water repellent, antifouling function according to the actual condition.



Specifications:

Properties Unit Specifications Notes
Main ingredients Polyester Spunbond
Weight/Tolerance g/m2 260±12 ISO 9864
Post-Processing Anti-static coating, PTFE membrane, Flame retardant
Thickness mm 0.61±0.05 ISO 9073
Air permeability mm/s >40 ISO 9237(△P=200Pa)
Fractional Efficiency F9 EN799
E10-H13 EN 1822
Working temperature 100
Max. Operation temperature 120
Tensile strength/ MD N/5cm >900 ISO 9073
Tensile strength/CD N/5cm >720 ISO 9073
Elongation/MD % >20 ISO 9073
Elongation/CD % >20 ISO 9073
Flame retardant grade HB UL94:2023
Surface resistivity Ω/sq ≤105 IEC 62631-3-2



Applications:

Coal transportation

Coal collection

Flour

Aluminium powder

Zinc dust



Why choose us:

Strong R&D Capabilities

Better Experience

Longer filter life

Delivery on time

24/7 Customer Service



Packing:

Spunbonded Polyester Filter Media will be tightly sealed in a plastic bag to prevent any damage or contamination during transportation.

Four rolls packed in a pallet with appropriate labeling and markings for easy identification.



Shipping:

Spunbonded Polyester Filter Media will be shipped via air or sea freight depending on the customer's preference and location.

We will ensure that all necessary paperwork and documentation required for international shipping will be completed accurately and on time.

The estimated delivery time will be communicated to the customer upon placement of the order.



FAQ:
Q1. What is your product range?
A: Our products include filter material, dust collector cartridge filter, filter bag and other accessories.
Q2. What kinds of filter material do you have?
A: There are three standard types: spunbond polyester, needle felt and sythetic media. Please contact us for more details.
Q3.Can you advise the filter precision of the filter media?
A: Yes, normal polyester is 5 micron, we can also offer you H13 grade media with PTFE membrane.
Q4. Is your product reached the food contact grade?
A: Yes. We can offer you SGS certificate of raw material.
Q5. How about your delivery lead time?
A: Generally, under MOQ quantity take 7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q6.What is your sample policy?
A: We can supply sample, but the customers have to pay the sample cost and the courier cost at first. Sample cost can be refunded if you place formal orders in the future.
