170g/m2 Polyester Spunbond With PTFE Membrane For Industrial Dust Collector
| High Light: | Industrial Dust Collector Spunbond,170g/m2 Spunbond |
||

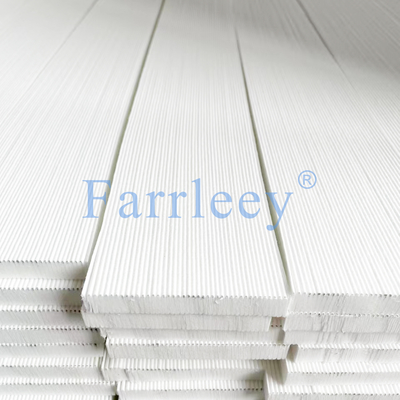

170g/m2 Polyester Spunbond With PTFE Membrane For Industrial Dust Collector
Farrleey Filtration Co., Ltd, located in Guangqing Industrial Park, Qingyuan, China, specializes in manufacturing advanced filtration solutions. The MC-0130 model combines polyester spunbond substrate with PTFE membrane lamination, delivering high air permeability, F9-grade filtration efficiency, and flame retardancy. Designed for demanding industrial air filtration systems, it is ideal for cleanrooms, medical equipment, painting line, surfacing treatment and more.
Key Features
- Multi-Layer Composite Structure: Polyester spunbond substrate (170 g/m²) bonded with PTFE membrane, achieving F9 filtration efficiency (EN 799 compliant).
- High Air Permeability: >80 mm/s airflow under 200Pa pressure (ISO 9237), minimizing system resistance.
- High-Temperature Resistance: Continuous operation up to 120°C (max. 130°C, EN 1822 certified).
- Robust Mechanical Strength: MD tensile strength ≥550 N/5cm, CD ≥400 N/5cm (ISO 9073), ensuring durability.
- Flame Retardant: HB grade (UL94:2023), reducing fire hazards in critical environments.
Technical Specifications
|
Parameter |
MC-0130 Specifications |
Test Standard |
|
Substrate Material |
Polyester Spunbond |
— |
|
Weight |
170 g/m² |
ISO 9864 |
|
Post-Processing |
PTFE Membrane + Flame Retardant |
— |
|
Thickness |
0.48 mm |
ISO 9073 |
|
Air Permeability |
>80 mm/s (200Pa) |
ISO 9237 |
|
Filtration Efficiency |
F9 Grade |
EN 799 |
|
Continuous Temperature |
≤120°C |
EN 1822 |
|
Max. Temperature |
≤130°C |
— |
|
MD Tensile Strength |
≥550 N/5cm |
ISO 9073 |
|
CD Tensile Strength |
≥400 N/5cm |
ISO 9073 |
|
MD/CD Elongation |
>30% |
ISO 9073 |
|
Flame Retardant Grade |
HB |
UL94:2023 |
Applications
- Cleanrooms: Precision environment control for electronics and pharmaceuticals.
- Industrial Dust Collection: Filtration of welding fumes and powder coatings.
- Medical Equipment: Ventilation systems in operating rooms and medical air filters.
-
